PowerMaster®
Model 335V Load Box
-
Battery-Powered Voltage & Current Source – No VAC Required
-
CT Burden Added Testing
-
One Lightweight Package- Includes Storage of Cables and Probes
World's First Battery Powered Current & Voltage Source

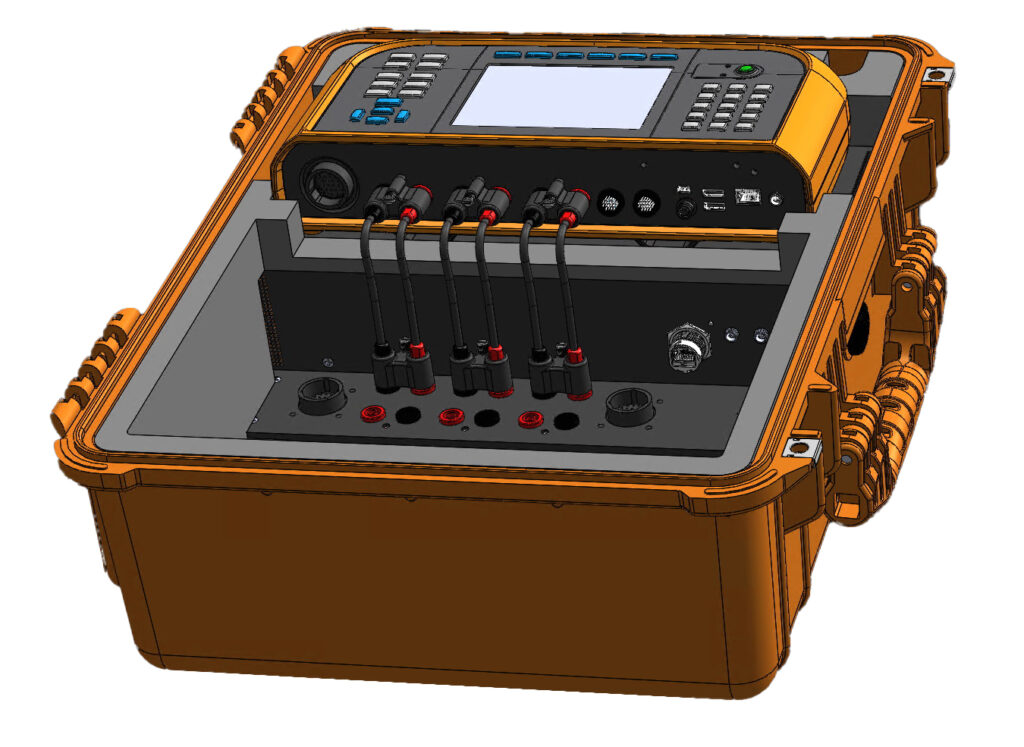

The PowerMaster® Model 335V Load Box is the first battery-powered voltage and current source for the industry-leading handheld PowerMaster® 3 Series and PowerMaster® 6 Series analyzers. By utilizing a Model 335V with a PowerMaster® 3 or 6 Series, the user will have the ability to perform phantom load meter testing up to 277 VAC and 5A while implementing the new current harmonic waveforms from the ANSI C12.1.
In addition, the PowerMaster® Model 335V Load Box will give the user the ability to perform a CT Added Burden, Direct Burden Measurement, and CT Demagnetization. The compact size of the 335V provides storage of all the standard test accessories of the lightweight PowerMaster® 3 or 6 Series analyzers.
Powermetrix continues to Raise the Standard of versatility, functionality, and portability.
- True one-case solution, containing the analyzer, cables, and probes all in one case
- Internal 100whr Li-Ion battery provides a full day’s worth of testing
- CE / IEC 61010 CAT IV 600V safety certification
- Vector Display
- Harmonic Analysis
- Wh, VAh, VARh, I²h Testing
- CT Added Burden + Ratio Testing
- Element Testing
- Direct Burden Measurement
- Calibration Verification
Direct Inputs
AC Current:
3 inputs, 100mA to 20A RMSAC Voltage:
3 inputs, 69V to 480V RMSAux Power:
1 input, 120 to 240 VACVoltage Source
AC Voltage:
3 Outputs, 69-277 VAC RMS (phase-neutral)Power Factor:
-1.00 to 1.00Current Source
AC Current:
3 Outputs, 100mA to 5A RMS maxPower Factor
-1.00 to 1.00CT Added Burden Test
Automated, User-Selectable 0.1, 0.5, 1.0, 2.0, and 4.0ΩApplications
Substation Meter Testing Wh, VARh, VAh, I²h CT Added Burden Testing Forward Energy Flow Reverse Energy Flow Element Testing Calibration VerificationEnvironmental
Operating Temperature:
0˚C to +50˚COperating Humidity:
<95% RH, non-condensing @ 23˚CBattery
Customer-Replaceable Battery 6800mAh Li-ion 4 Hour Charging Cycle (0-40˚C) Built-in 240V charger using a standard IEC C14 plugWeight
28 lbs. (including case and 3 or 6 Series)Dimensions
21in x 17in x 8.5inWarranty
2 YearsSafety
Isolation Protection:
IEC 61010-1Measurement Category:
CAT IV 600V*Degree of Protection:
IP-40**Safety tested as an approved accessory with the CAT IV 600V version of the 3 or 6 Series to maintain IEC 61010 compliance
- Meter Site Verification
- Substation Site Testing
- Revenue Protection
- Magnetic IR Pickup
- Current Flex Probes
- High Voltage LiteWire Current Probe
